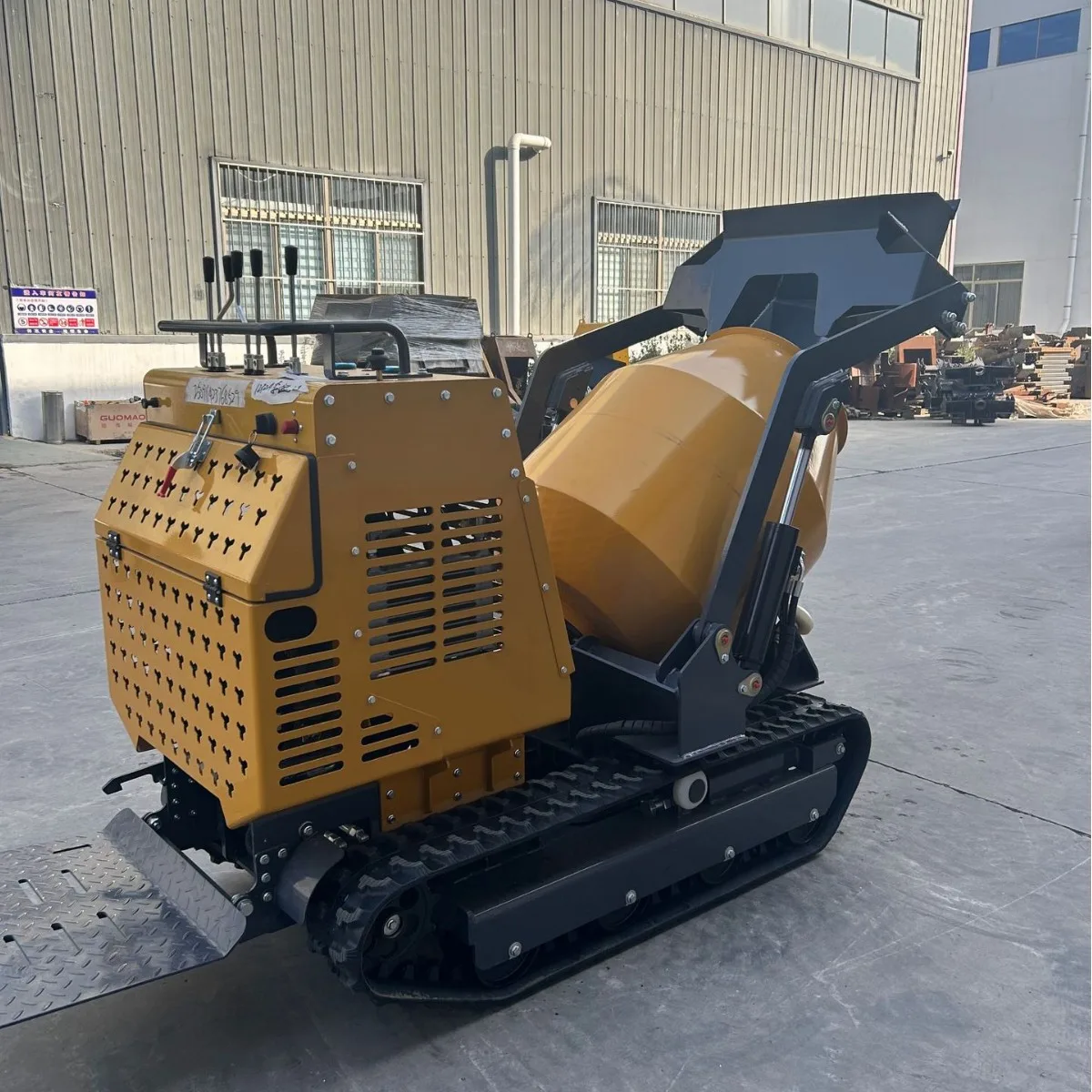

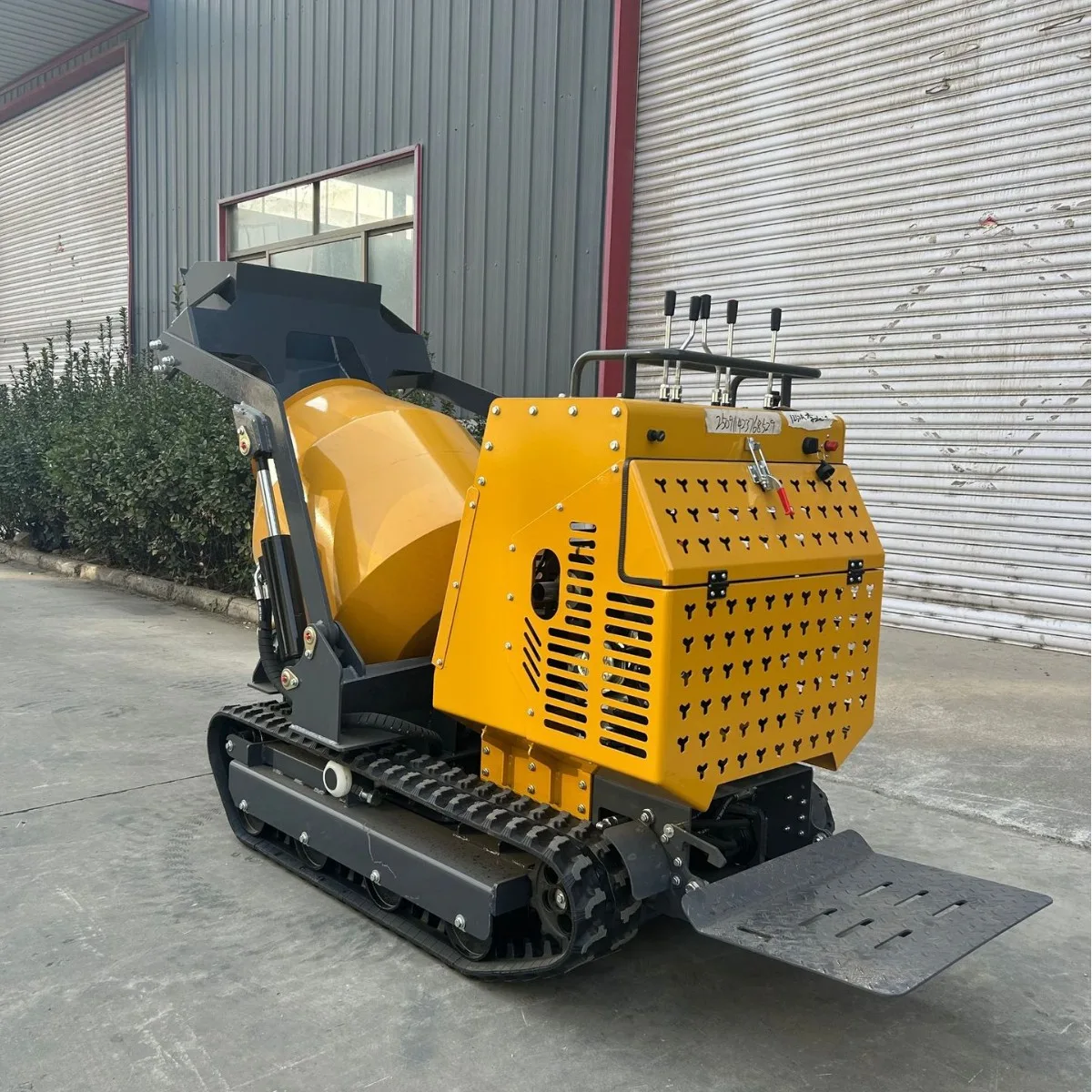

Mini Mixer Turck is a small engineering/agricultural transportation equipment used for short distance handling and self dumping of materials In scenarios where large vehicles are difficult to enter and manual handling efficiency is low, loading, transportation, and unloading can be completed with a smaller body to reduce labor costs and improve efficiency.
Common transportation materials
Working principle
Technical Parameters
|
Engine data |
||
| 动力型号： | Engine Model： | Briggs&Stratton |
| 动力种类： | Engine Type： | Single cylinder, OHV, 4-stroke, air cooling |
| 总排气量(ML)： | Displacement： | 420CC |
| 额定功率(kw/rpm)： | Rated Power： | 13.5HP/3600rpm |
| 燃油种类： | Fuel Type： | 92 # Gasoline |
| 油箱容量（L）： | Fuel Tank capacity： | 6.5 |
|
Dimensional data |
||
| 机体净重（KG）： | Total Weight： | 750 |
| 机体尺寸（MM）铲斗立起：不含脚踏板不含铲斗 | Machin size：（Without pedal, without bucket） | 1800*900*1500 |
| 含脚踏板铲斗尺寸（MM）： | Bucket size with foot pedal: | 2500*900*1500 |
| 底盘宽度（MM）： | Chassis width： | 850 |
|
Mixing tank data |
||
| 灌口直径（MM）： | Diameter of irrigation port: | 460mm |
| 搅拌罐长（MM）： | Mixing tank length: | 880mm |
| 罐体直径（MM）： | Mixing tank diameter: | 720mm |
| 罐体容量：（dm³) | Tank capacity: | 300 |
| 倾卸方式： | Dumping method: | Hydraulic Tipper |
| 罐体倾翻角度 ( ° ) : | Mixing tank dumping angle: | 100 |
|
Track data |
||
| 履带宽度（MM）： | track width： | 180 |
| 履带接地长度（MM）： | Track grounding length： | 1000 |
| 底盘离地间隙（MM）： | Chassis ground clearance: | 110 |
|
Bucket data |
||
| 铲斗长度（MM）： | Bucket length: | 820mm |
| 漏料口长度（MM）： | Leakage port length: | 300mm |
| 漏料口宽度：（MM）： | Leakage port width: | 150mm |
|
Walk |
||
| 行走性能速度（km/h）： | Walking Speed： | 3 |
| 最小回转半径（MM）： | Minimum Turning radius： | 1300 |
| 履带中心距（MM）： | Track gauge： | 670 |
| 爬坡能力 ( ° ) : | Climbing a billty： | 25 |
| 发动机选配 | ||
| 发动机型号： | 排放 | 马力/转速 rpm |
| 常柴 192 | 国二 | 11HP/3600 |
| 科普 192 | 欧五 | 11HP/3600 |
| 润通 420 | EPA/欧五 | 15HP/3600 |
| 本田 GX390 | EPA | 13HP/3600 |
A: We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
A: Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
A: Yes, we support mass production. We can support customization (one piece is enough), but we can’t provide free samples.
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish Other customizable options
RuntoMEC’s team is online 24 hours a day to answer your questions. Reach out immediately to find the perfect Mini Dumper machine for your business.
