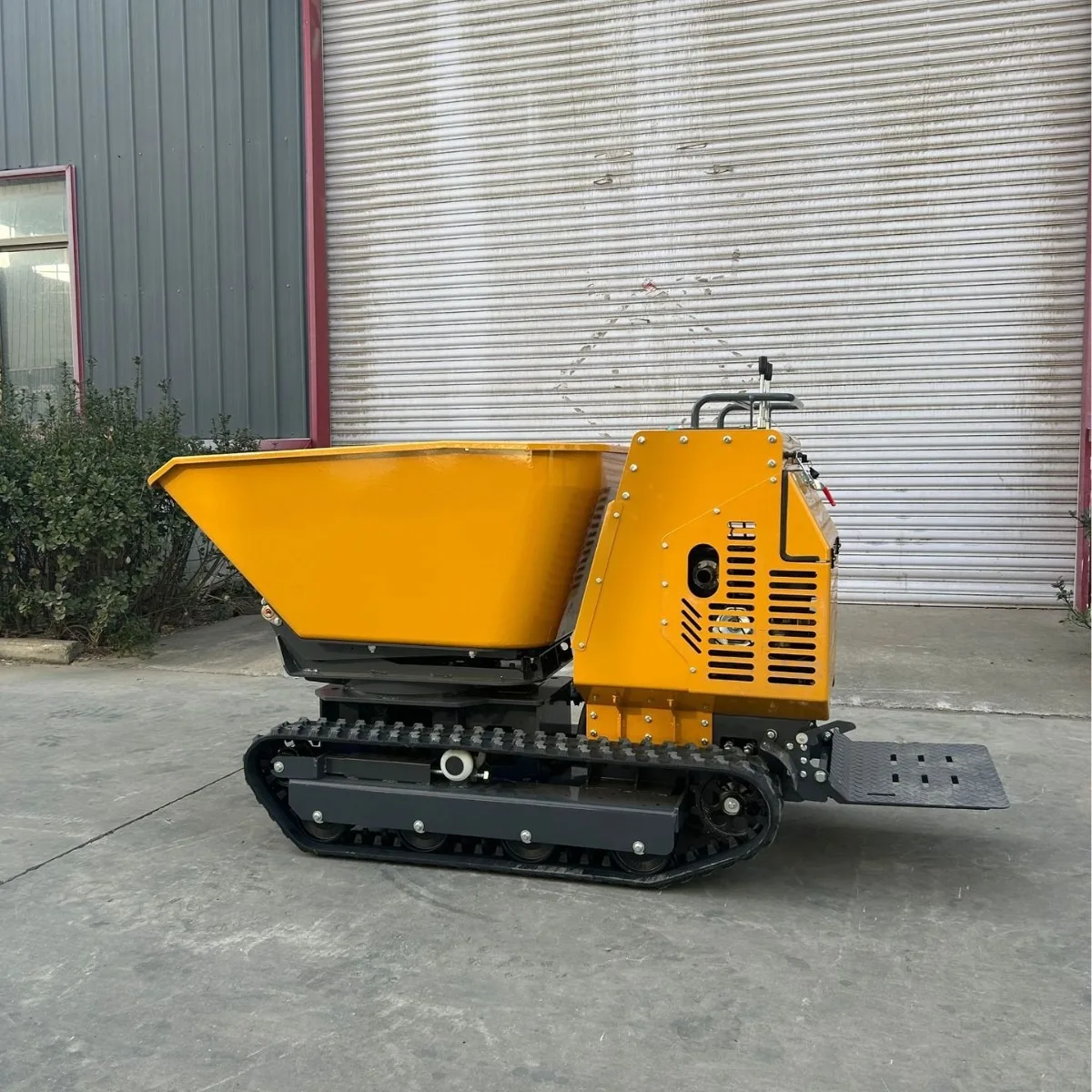

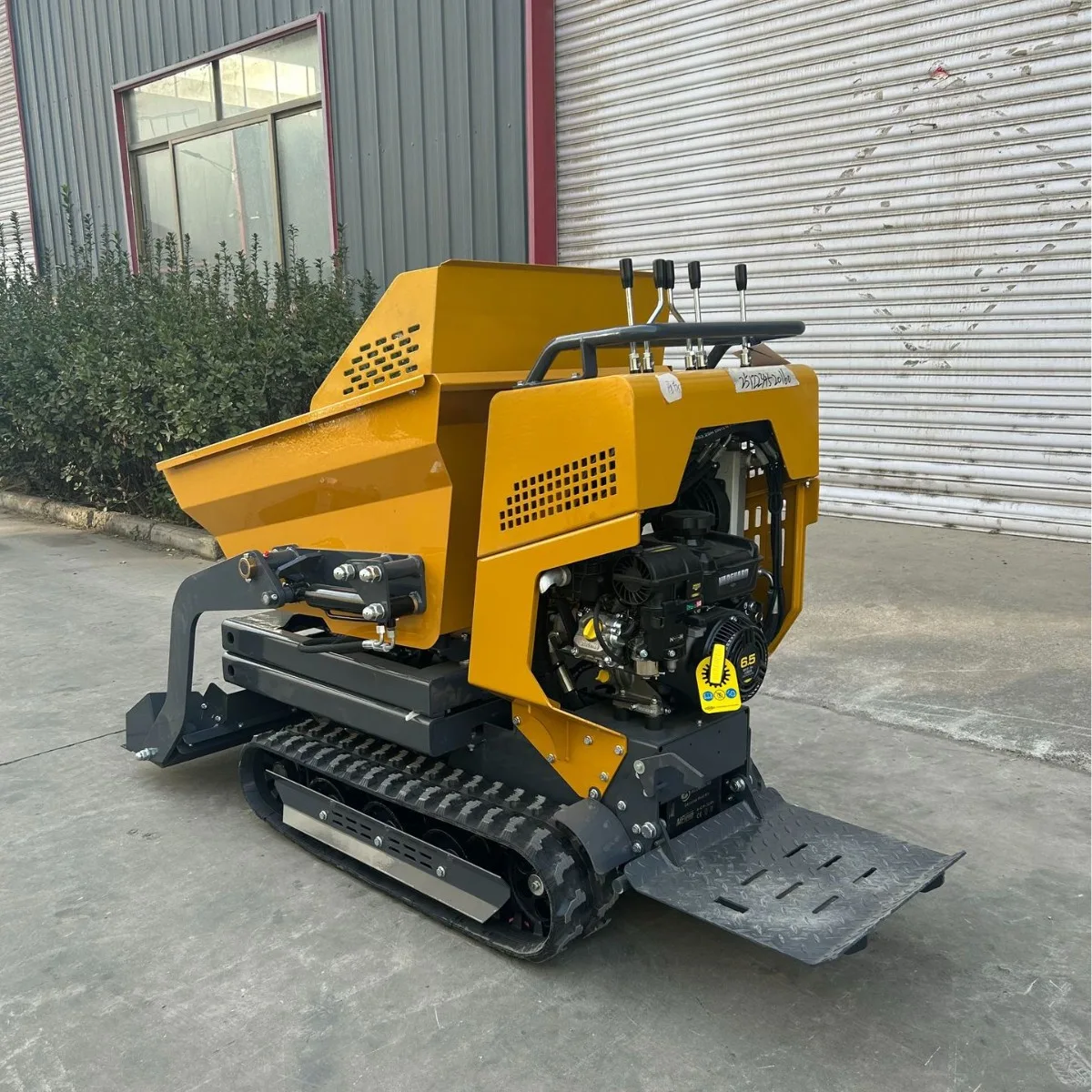

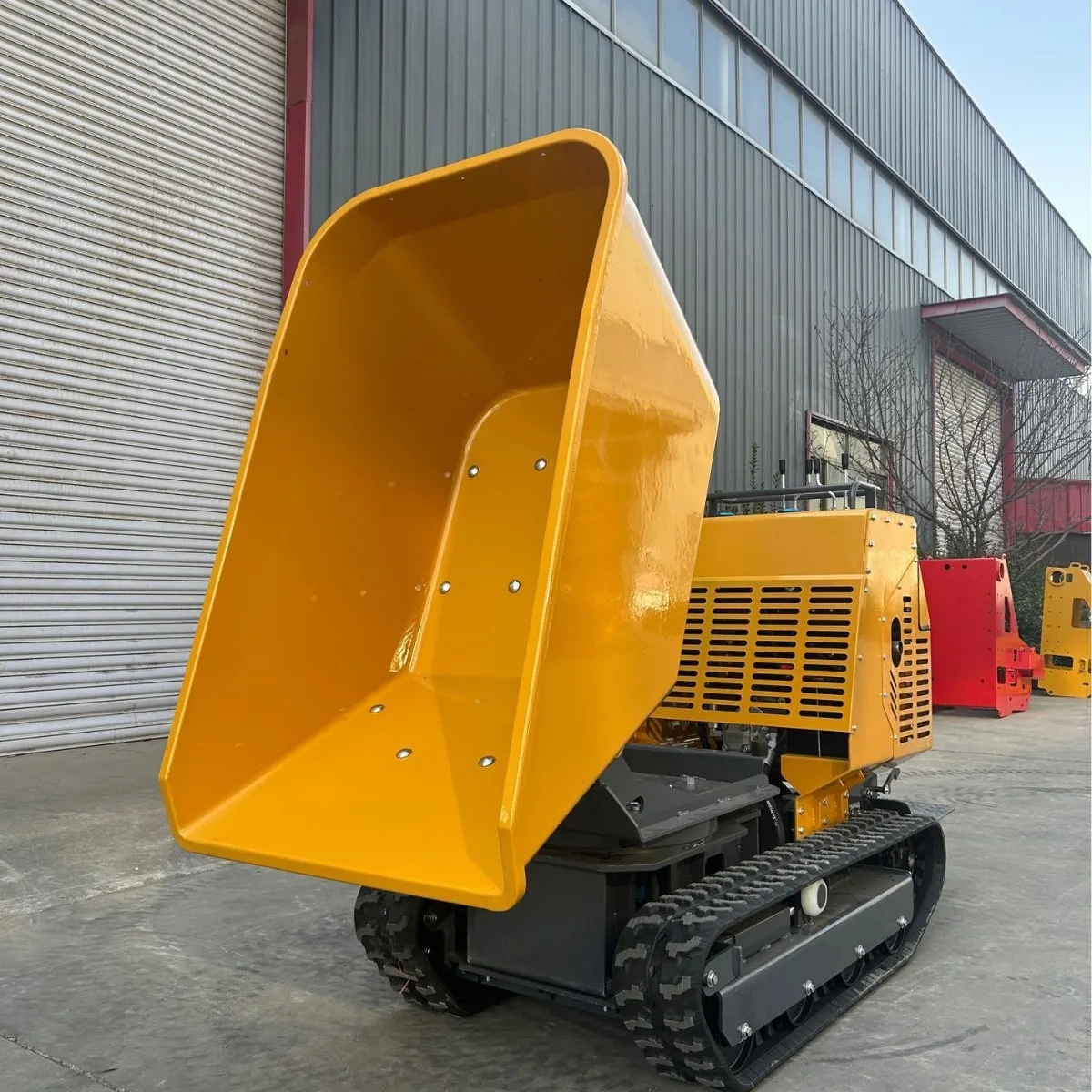

Mini Dumper is a small engineering/agricultural transportation equipment used for short distance handling and self dumping of materials In scenarios where large vehicles are difficult to enter and manual handling efficiency is low, loading, transportation, and unloading can be completed with a smaller body to reduce labor costs and improve efficiency.
Common transportation materials
Working principle
|
Engine data |
||
| 动力型号： | Engine Model | Briggs&Stratton |
| 动力种类： | Engine Type | Single cylinder, OHV, 4-stroke, air cooling |
| 总排气量(ML)： | displacement | 420CC |
| 额定功率(kw/rpm)： | Rated Power | 13.5HP/3600rpm |
| 燃油种类： | Fuel Type | 92 # Gasoline |
| 油箱容量（L）： | Fuel Tank capacity | 6.5 |
|
Weight data |
||
| 机器净重（KG）： | Net weight: | 850 |
| 最大载重（KG）： | Maximum load capacity | 1200 |
| 机体尺寸（MM）：
（不含脚踏板） |
Body size :
(Footboard not included) |
2060*900*1400 |
| 含脚踏板机器尺寸（MM）： | Pedal machine size
included |
2470*900*1400 |
| 货箱尺寸（MM）： | Container size： | 1400*800*600 |
| 底盘宽度（MM）： | Chassis width： | 850 |
|
Rotating data |
||
| 最大旋转角度 ( ° ) : | Maximum rotation Angle | 180 |
| 旋转方式： | Rotation mode: | Hydraulic rotation |
| 倾翻间距（MM）： | Tipping interval | 320mm |
|
Track data |
||
| 履带宽度（MM）： | track width： | 180 |
| 履带接地长度（MM）： | Track grounding length： | 1000 |
| 底盘离地间隙（MM）： | Chassis ground clearance: | 140 |
|
Hopper data |
||
| 货箱容量（dm³) | Cargo box Capacity | 594 |
| 翻斗方式： | Tipping Systme | Hydraulic Tipper |
| 翻斗角度 ( ° ) : | Tilting Angle | 90 |
| 倾 翻 后货 箱 离 地 间 隙（MM） | Clearance after tipping container | 400 |
|
Walk data |
||
| 行走性能速度（km/h）： | Walking Speed | 5 |
| 爬坡能力 ( ° ) : | Climbing a billty | 25 |
| 发动机选配 | ||
| 发动机型号： | 排放 | 马力/转速 rpm |
| 常柴 192 | 国二 | 11HP/3600 |
| 科普 192 | 欧五 | 11HP/3600 |
| 润通 420 | EPA/欧五 | 15HP/3600 |
| 本田 GX390 | EPA | 13HP/3600 |
A: We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
A: Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
A: Yes, we support mass production. We can support customization (one piece is enough), but we can’t provide free samples.
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish Other customizable options
RuntoMEC’s team is online 24 hours a day to answer your questions. Reach out immediately to find the perfect Mini Dumper machine for your business.
