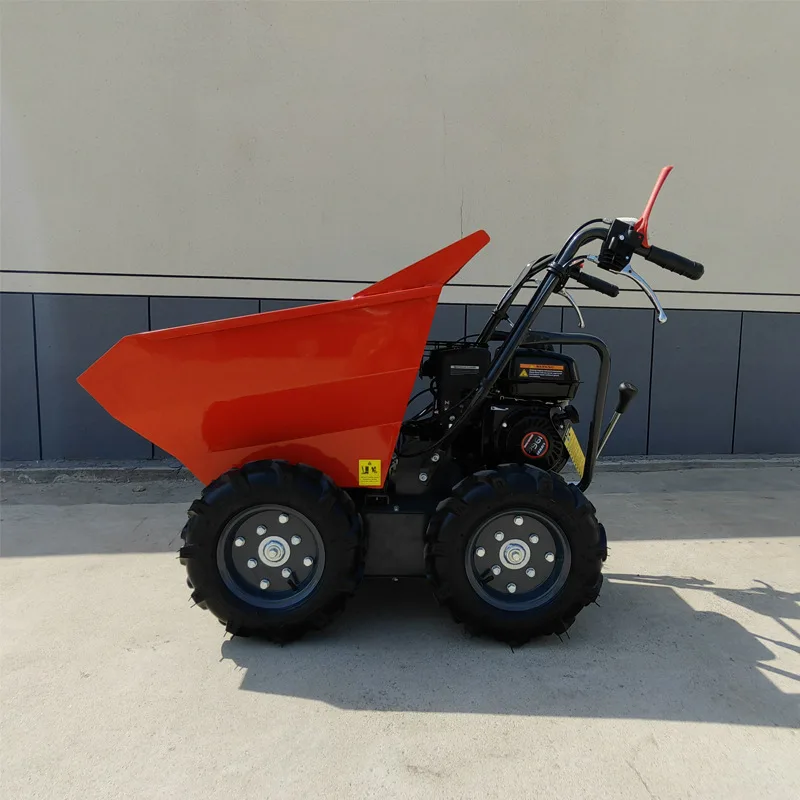

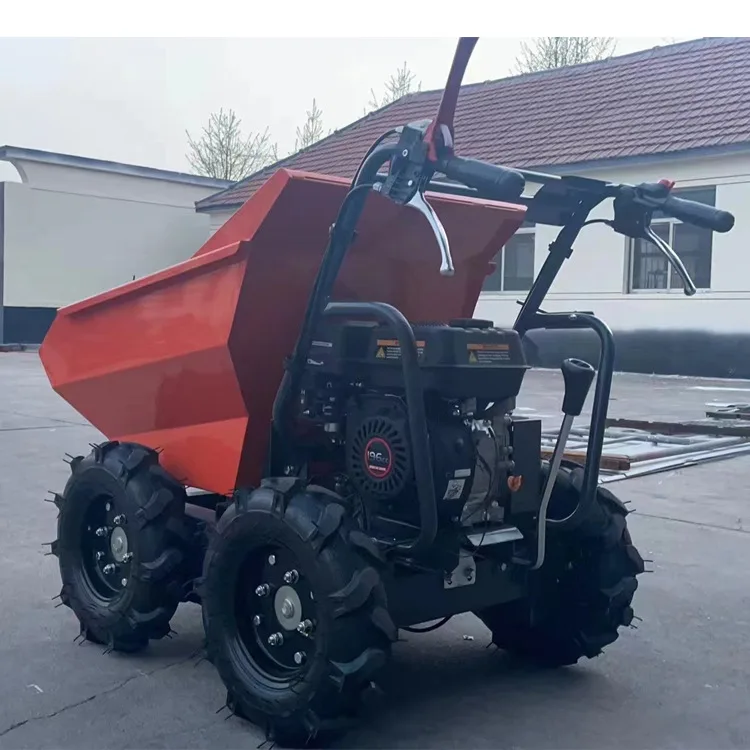

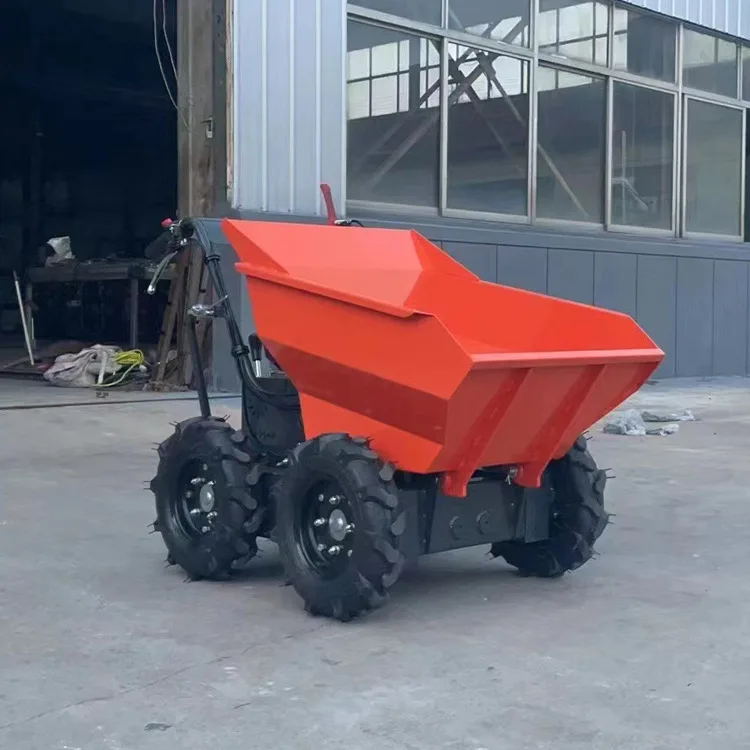

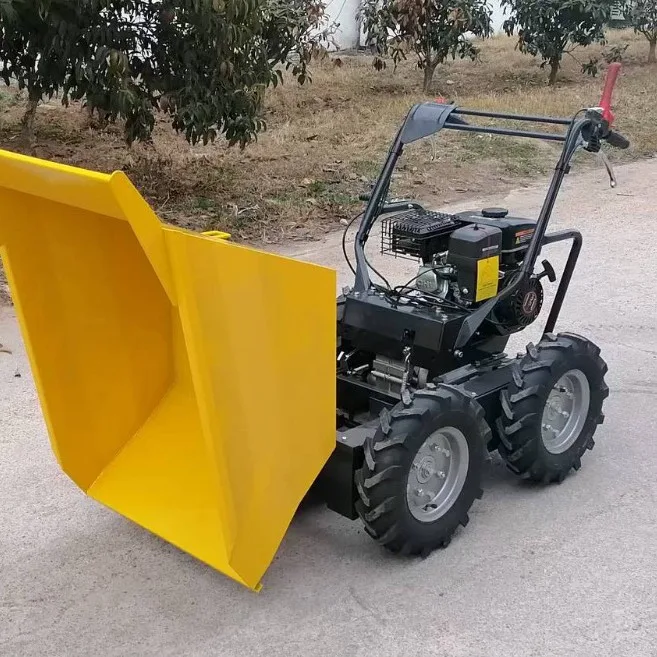

Mini Wheeled Dumper is a small engineering/agricultural transportation equipment used for short distance handling and self dumping of materials In scenarios where large vehicles are difficult to enter and manual handling efficiency is low, loading, transportation, and unloading can be completed with a smaller body to reduce labor costs and improve efficiency.
Common transportation materials
Working principle
Technical Parameters
| Engine | ||
| 动力型号： | Engine Model | Briggs&StrattonPioneer |
| 动力种类： | Engine Type | Single cylinder, OHV, 4-stroke, air cooling |
| 总排气量(ML)： | displacement | 203CC |
| 额定功率(kw/rpm)： | Rated Power | 6.5HP |
| 燃油种类： | Fuel Type | 92 # Gasoline |
| 燃油消耗（g/kw ·h）： | Fuel Consumption | ≤0.395 |
| 油箱容量（L）： | Fuel Tank capacity | 3.6 |
| 机油容量（L）： | Engine oil capacity | 0.6 |
|
Weight |
||
| 机体重量（KG）： | Total Weight | 208 |
| 最大载重（KG）： | Max loading weight | 300 |
|
Hopper |
||
| 货箱容量（dm³) | Cargo box Capacity | 200 |
| 翻斗方式： | Tipping Systme | Manually Unloaded |
| 翻斗角度 ( ° ) : | Tilting Angle | 90 |
|
Walk |
||
| 行走性能速度（km/h）： | Walking Speed | 5 |
| 最小回转半径（m）： | Minimum Turning radius | 1.5 |
| 动机选配 | ||
| 发动机型号： | 排放 | 马力/转速 rpm |
| 科普 173（柴油） | 欧五 | 5.5HP/3600 |
| 润通（手拉启动） | EPA/欧五 | 7HP/3600 |
A: We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
A: Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
A: Yes, we support mass production. We can support customization (one piece is enough), but we can’t provide free samples.
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish Other customizable options
